Author Topic: Bolt Pattern Templates For Rims  (Read 2078 times)

Offline

  • Trade Count: (0)
  • Green Horn
  • ***
  • Posts: 109
  • Location: Snohomish, WA
Bolt Pattern Templates For Rims
« on: October 01, 2012, 09:10:56 am »

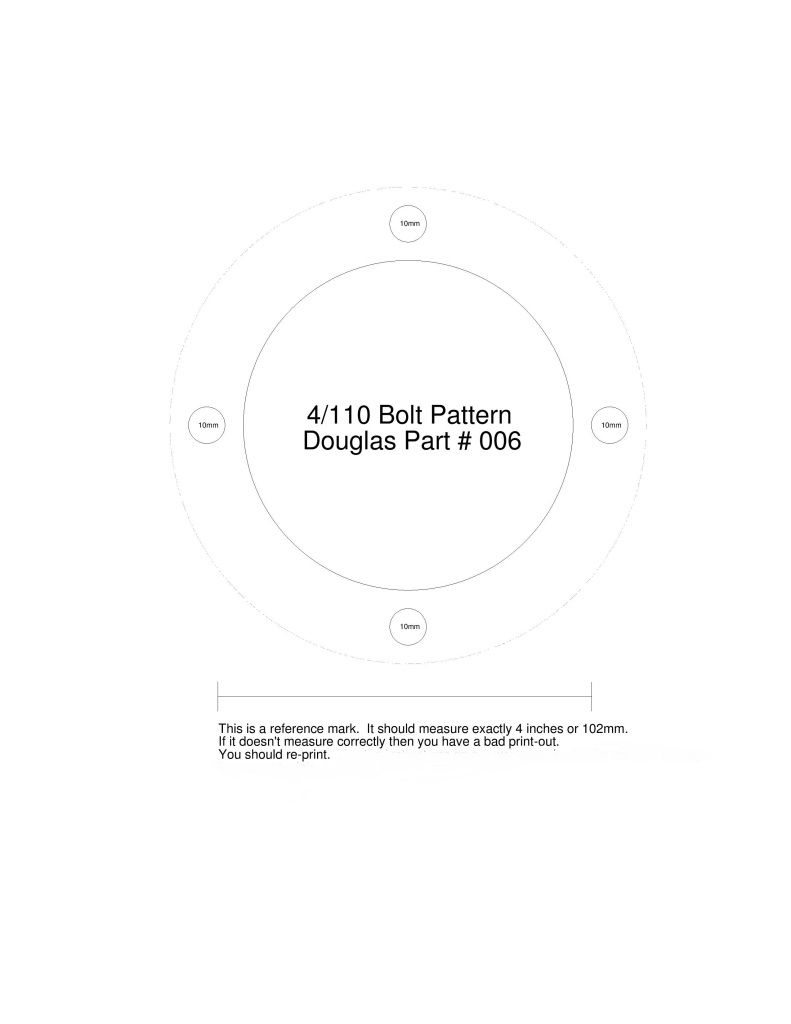

Link for front and rear bolt pattern templates.

http://www.recreationtires.com/bolt.html
Logged
"Insandity isn't hereditary, but you can get it from anyone"

85 LT250R
86 LT250R/500 (in work)
09 YFZ450R
08 TRX250EX

Share on Bluesky Share on Facebook

Offline

  • Mitch Keller
  • Trade Count: (0)
  • Administrator
  • Trail Blazer
  • *****
  • Posts: 799
  • Love The Smell Of 927 and Race Fuel In The Morning
  • Location: Riverside Ca
Re: Bolt Pattern templates
« Reply #1 on: October 01, 2012, 11:34:08 am »


Logged
F Mitch Keller

Offline

  • Trade Count: (0)
  • Forum Moderator
  • Pro Member
  • *********
  • Posts: 860
  • Gender: Male
  • Location: SoCal
Re: Bolt Pattern templates
« Reply #2 on: October 01, 2012, 10:46:04 pm »
Double and triple check the size references on the bottom.

If you don't your pattern will be off, ask me how I know :)
Logged

Offline

  • Trade Count: (0)
  • Green Horn
  • ***
  • Posts: 79
  • Gender: Male
  • Living Loving Slave
  • Location: voorhees, nj
Re: Bolt Pattern Templates For Rims
« Reply #3 on: September 06, 2015, 05:50:35 pm »
Im looking to put beadlocks on the rear of my 87 500. is there a different hub I can install that will extend the axle a couple inches too? Having a hard time finding 5 bolt beadlocks.
Logged

Offline

  • Sandaholic
  • Trade Count: (0)
  • Forum Moderator
  • Elite Member
  • *********
  • Posts: 1195
  • Gender: Male
  • Sandaholic / speed addict
  • Location: Yuma, Arizona
Re: Bolt Pattern Templates For Rims
« Reply #4 on: September 07, 2015, 12:50:55 pm »
Quote from: Ywnmn on September 06, 2015, 05:50:35 pm
Im looking to put beadlocks on the rear of my 87 500. is there a different hub I can install that will extend the axle a couple inches too? Having a hard time finding 5 bolt beadlocks.

If you want 5 bolt beadlock wheels, you may have to order the lock rings and have them welded to your existing wheels.
Or you can look for a set of G-Force wheel hubs for a Suzuki LTZ-400. Factory LTR-450 hubs will also work but they are not as offset as the G-Force pieces.
Logged
Brian
1988 Suzuki LT-250R (The HPR test mule)
1987 Suzuki LT-500R
1990 Suzuki LT-500R
1982 Honda ATC-185S
1982 Honda ATC-250R

Offline

  • Trade Count: (0)
  • Forum Moderator
  • Pro Member
  • *********
  • Posts: 860
  • Gender: Male
  • Location: SoCal
Re: Bolt Pattern Templates For Rims
« Reply #5 on: September 08, 2015, 09:51:44 am »
The G-Force hubs are good and extend up to 3" I think four around $110

If you want a cheaper option, the Suzuki LTR450 rear hubs will slide right on and gave you +.75" bot sides and you can order a set of 3/8ths axle spacers from durablue for a little extra.  LTR hubs on ebay run around $40 and I'm not sure on the spacers.
Logged

Offline

  • Trade Count: (0)
  • Green Horn
  • ***
  • Posts: 79
  • Gender: Male
  • Living Loving Slave
  • Location: voorhees, nj
Re: Bolt Pattern Templates For Rims
« Reply #6 on: September 08, 2015, 04:13:37 pm »
thanks guys.
