Anyone ever tried a metal tech swinger with a JJ&A drag axle??
Posted by
Dragzilla346
on 04 Mar, 2013 16:54
-
looking to set my zilla up for drags, anyone oever tried a metal tech swinger with a banshee carrier and drag axle?? wonder if theres any benefits in running a drag axle or not. its getting to be that time of the year to race and gonna get my quad on the right track. Thanks in advance!!
-
-
#1 Reply
Posted by
LT500Kid
on 04 Mar, 2013 17:24
-
isnt cunningham running a jj&a axle?
He has a nice set up on his zilla check his out
-
-
#2 Reply
Posted by
Stpltn250r
on 04 Mar, 2013 17:30
-
alkyzilla a Cunningham run a jjanda with metal tech. my hill frame has a jjanda set up and me new dragger for the liger/zilla will use a jjanda. think a stock zilla axle shaft with no hubs(wheel,sprocket,rotor) weighs roughly the same as a jjanda complete minus carrier.
better call jjanda if you want one. last I heard he was a week behind and shorthanded.
-
-
-
ill have to check them out, im just looking to save some weight anyway possible without building a drag only frame. also is there anything else i can do to lighten it up a bit?
-
-
-
-
-
-
^^ just what i was looking for, 275lbs would be awesome to get down to, but gotta bring myself to cut on my frame
-
-
-
275lbs should be possible without cutting the frame...you really don't get anything out of cutting the frame, 10lbs max.
Better to bolt lighter stuff on than take framework away.
-
-
-
i hope so, i already have the front brakes gone, no headlight, airbox is gone as well, very small front tires and 4 snows in the rear. the axle would probably help alot being its rotating mass and not dead weight, anything is gotta be lighter than a durablue HD axle lol.
-
-
-
Yeah, might as well strap a boat anchor to the swingarm while you're installing a durablue, because you probably won't notice the difference
What kind of A-arms and shocks you running?
-
-
-
stock and stock. was looking into some marvin shaw shocks to save some more pounds too
-
-
-
You've got a lot of room for improvement there.
If it's drag only, consider using a solid strut on a single a-arm for the front.
If you want shocks up front, you can still get by with a simple single a-arm setup but you're a little more limited in where you can ride.
Having a shock in the rear can sometimes help launch and control.
Marvin shaws are a good lightweight option.
I guess the question is how far do you want to go with it?
-
-
#11 Reply
Posted by
Stpltn250r
on 05 Mar, 2013 06:10
-
Tex is correct. Depends on how far you are willing to go. Narrowed plus foward a arms? Shaws? JJ&A? Where do you race, are you going to need those 4 snows or are you going to need paddles? Wheelie bar? Spindles mount tires? I think you can only go so far with a stock bike than they become a pain in the ass. The time and money spent on a strictly only dragger will be better spent on a rigid chassis. I've learned that from experience.
-
-
-
What year bike are you running?
If it's an 87, I know for a fact the front A-arms, ball joints, spindles, & shocks weigh a TON. Maybe a aftermarket A-arm set up with aftermarket front spindles and marvin shaws all the way around might be the way to go?
-
-
#13 Reply
Posted by
Stpltn250r
on 05 Mar, 2013 09:15
-
You could do a set up like what four pokes do. Its one single a arm and the spindle is set up to use a spindle banshee wheel or a tapered banshee wheel or I guess could turn it to fit a stock zilla hub, but than the top of the spindle is the actual mount for the shaw or strut. Pretty nice looking.
-
-
#14 Reply
Posted by
Stpltn250r
on 05 Mar, 2013 09:21
-

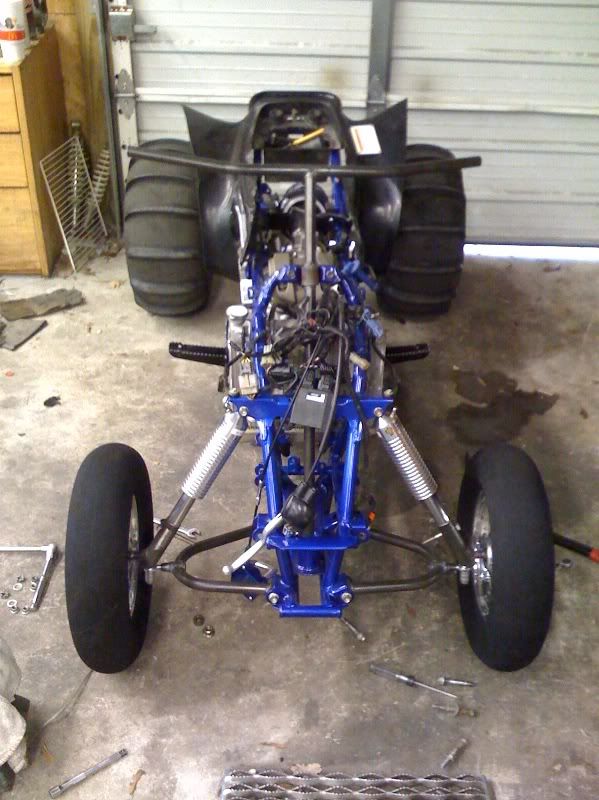

Another set up. Looks like Precision Powersports in Missouri.
-
-
-
my bike is a 87, and its mainly dirt and sand drags both, its already set up for a wheelie bar right now. all of these look like good ideas, theres a few guys locally that build drag chassis that could help me on the front end setup and some other things.
-
-
#16 Reply
Posted by
Stpltn250r
on 05 Mar, 2013 15:11
-
lets see some pictures. where are you from?
-
-
#17 Reply
Posted by
PCS
on 05 Mar, 2013 16:35
-
el diablo swaped in a factory sub frame from a honda 400ex that shaved some weight off the zilla and looks nice, search on the forum for some pics. 400ex sub frames are cheap and easy to find.
-
-
-
im from southern ohio, and ill post some
-
-
-

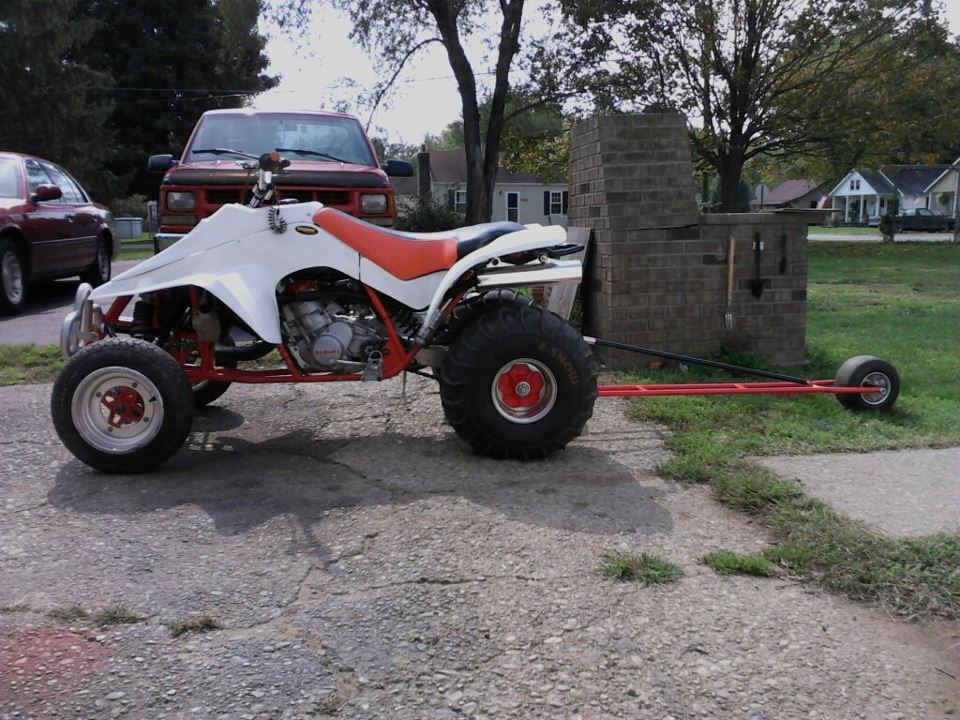

last years setup
before i added the wheelie bar
-
-
-
What couldn't handle the U of M blue and yellow and had to go with Buckeye colors
JK, looks nice actually like the colors, haven't seen that combo before on a zilla. Get rid of the realtors for weight savings. they weigh 27 lbs each 54 lbs for 2 tires.
-
-
-
the realtors are longgg gonnne, i figured out there no good realll quick lol. after the first ride i took them off and switched to itp holeshots for awhile, then i finally found some 4 snows mounted on 5 lug rims, the top picture is whats on it right now. color combo is white and chevy hugger orange that came on the old muscle cars.
-
-
#22 Reply
Posted by
QuadMan8
on 05 Mar, 2013 19:08
-
I have had those realtors on my raptor for about 8 years. I COULD NOT wear those suckers out !! They wore like Iron. I finally replaced them last month---BRICKS
-
-
-
My friend bought a set in 91 for his 86 250 QR. they still have 3/4's of the tread still after being on quite a few different quads.
-
-
#24 Reply
Posted by
Stpltn250r
on 05 Mar, 2013 20:16
-
There is a guy building my chassis for my lt500 based bike that is in ohio.
-
