Author Topic: On the way to texas!!  (Read 2336 times)

Offline 13.robb

  • Trade Count: (0)
  • Weekend Warrior
  • ****
  • Posts: 170
  • Gender: Male
  • Location: Lost Vegas???
On the way to texas!!
« on: May 19, 2013, 12:58:47 pm »
Yessir!  Time For some testing. My sand season is over in Las Vegas. So i'm sending this to west texas king. He PROMISED this would motivate him to get his 250 together faster so im glad to help wherever i can lol...
He is going to put some time on it to make sure there are no issues with this part before i start making them available. It will fit 87 and up 250's and all the zilla's. I will offer a windowed and non windowed type. Like i said, not going to release it until tex gets me some feedback on it just in case it needs any tweaks.

Thanks again. Robb

Got any pics Tex???
I make carbon case savers, and sprocket covers for a bunch of crazies that own ancient bikes, Wait, I have an ancient LT250 too!!!

Share on Facebook Share on Twitter


Offline WestTexasKing

  • The Most
  • Trade Count: (0)
  • Elite Member
  • **********
  • Posts: 1119
  • Kills: 9007
  • Location: Monahans TX
Re: On the way to texas!!
« Reply #1 on: May 19, 2013, 01:24:27 pm »

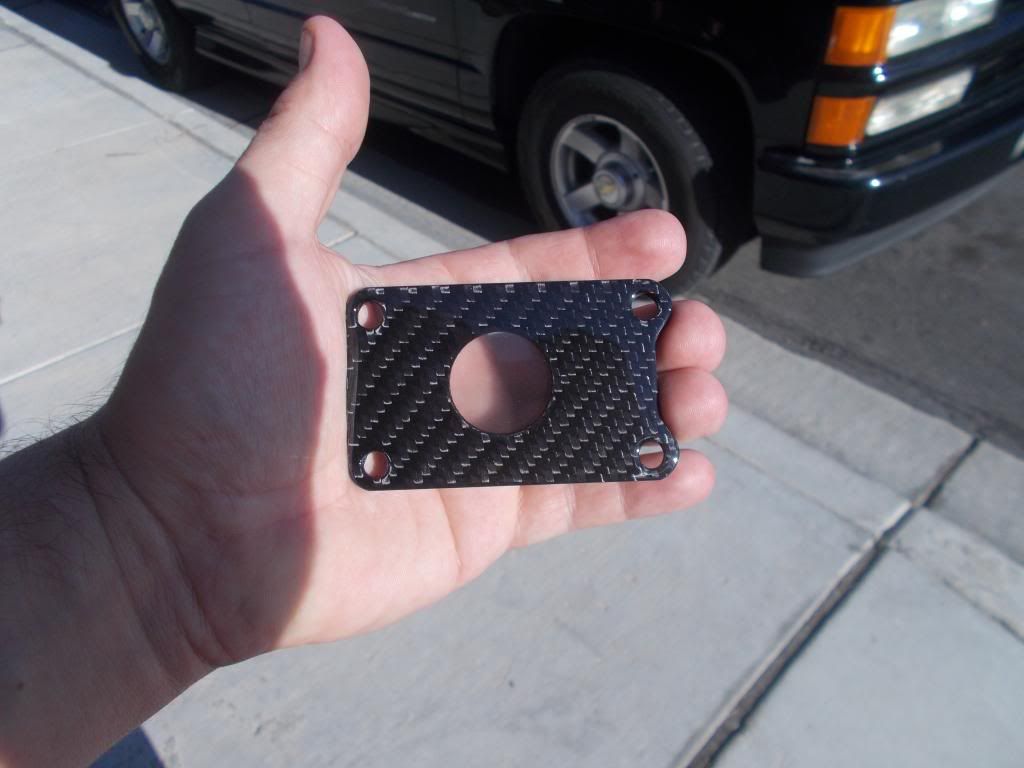

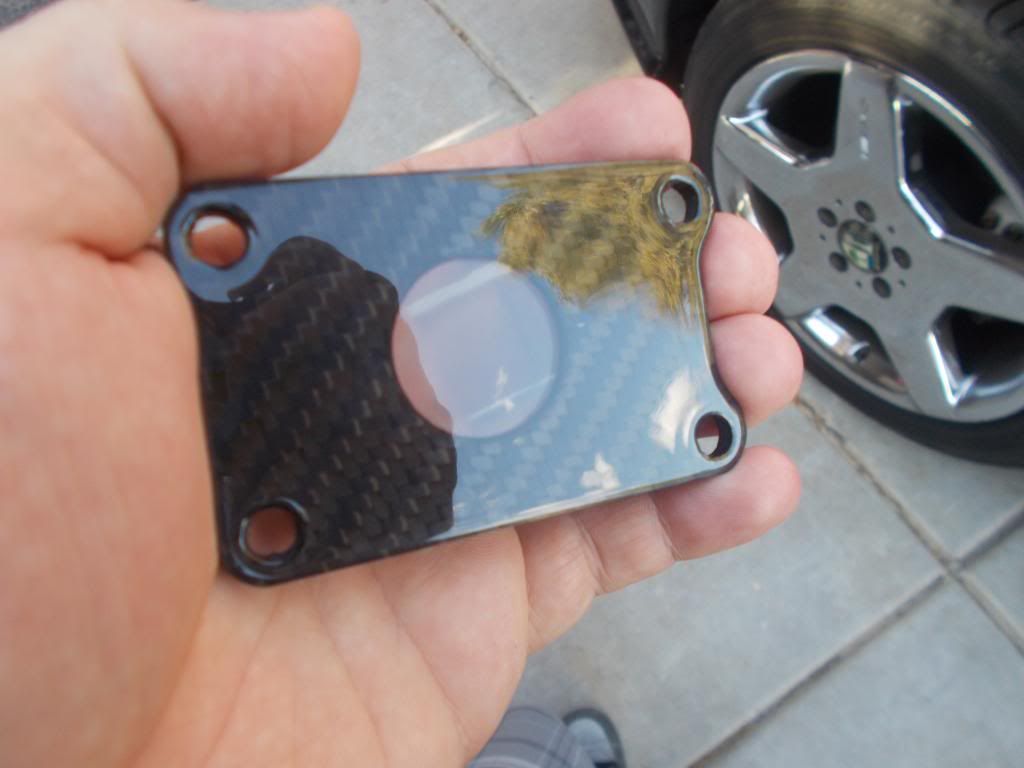

Here's the pics you sent me:





Hey, what kind of torque do you think I should use on it?
I'd hate to crush it under excess pressure.

Offline 13.robb

  • Trade Count: (0)
  • Weekend Warrior
  • ****
  • Posts: 170
  • Gender: Male
  • Location: Lost Vegas???
Re: On the way to texas!!
« Reply #2 on: May 19, 2013, 01:41:44 pm »
Thanks, i was having trouble resizing the pics. They wont crush. 16 layers thick carbon fiber (overbuilt once again). I think some nice washers under the bolts will work well. I recommend using an ultra grey adhesive will work best that way you dont have to crush a gasket.
Reason i say that is you dont want to over torque the soft threads on the cylinder and also dont want to damage the clear coating on the part.
I make carbon case savers, and sprocket covers for a bunch of crazies that own ancient bikes, Wait, I have an ancient LT250 too!!!

Offline WestTexasKing

  • The Most
  • Trade Count: (0)
  • Elite Member
  • **********
  • Posts: 1119
  • Kills: 9007
  • Location: Monahans TX
Re: On the way to texas!!
« Reply #3 on: May 19, 2013, 02:16:27 pm »
Gotcha.
I don't have the part in hand so I can't tell how thick it is, thought I'd ask either way.
Figured a washer should do the trick in spreading the load out and preventing any surface damage.


You want to talk about overbuilt carbon fiber, I've got a plane with 1/2" thick carbon fiber skin...no telling how many layers that is!

Offline QuadMan8

  • Trade Count: (0)
  • Range Rover
  • *****
  • Posts: 589
  • Gender: Male
  • If they can't kick start it--they cant ride it
  • Location: Utah
Re: On the way to texas!!
« Reply #4 on: May 19, 2013, 04:46:02 pm »
13.robb    Have you ever looked into a CF zilla hood.  What would that cost in CF.  It would be so cool.
If they can't kick start it--THEY CAN'T RIDE IT

Offline Dezsled

  • Trade Count: (0)
  • Forum Moderator
  • Elite Member
  • *********
  • Posts: 2058
Re: On the way to texas!!
« Reply #5 on: May 19, 2013, 06:07:20 pm »
Man that's nice looking stuff!
87 HPR LT500
04 Roll LOBO II TRX250R
06 LTR450
87 LT500
85 & 86 LT250
86 & 87 TRX250R
07 & 09 Husqvarna TE450
00 CR125R

Offline AustenW

  • Trade Count: (0)
  • Green Horn
  • ***
  • Posts: 130
  • Gender: Male
  • Location: England
Re: On the way to texas!!
« Reply #6 on: May 20, 2013, 04:12:58 am »
How did you get the clear window?

Is it clear coat or polycarbonate?

+2 on the Zilla hoods

Offline El Diablo

  • Sandaholic
  • Trade Count: (0)
  • Forum Moderator
  • Elite Member
  • *********
  • Posts: 1194
  • Gender: Male
  • Sandaholic / speed addict
  • Location: Yuma, Arizona
Re: On the way to texas!!
« Reply #7 on: May 20, 2013, 04:25:56 pm »
Good looking part!   +k2
I still say a CF reed boot would be nice to have also!
Brian
1988 Suzuki LT-250R (The HPR test mule)
1987 Suzuki LT-500R
1990 Suzuki LT-500R
1982 Honda ATC-185S
1982 Honda ATC-250R

Offline 13.robb

  • Trade Count: (0)
  • Weekend Warrior
  • ****
  • Posts: 170
  • Gender: Male
  • Location: Lost Vegas???
Re: On the way to texas!!
« Reply #8 on: May 20, 2013, 08:25:30 pm »
Thanks guys. im working with some new processes. The window is a super strong epoxy, it is all coated and incapsulated in a barrier coat. i gotcha on the hoods, this new process will make it easier to attempt a mold, just need to find time to build a mold. Tex, it is going in the mail tomorrow. How are ya coming along?
I make carbon case savers, and sprocket covers for a bunch of crazies that own ancient bikes, Wait, I have an ancient LT250 too!!!

Offline BadMoonRacing500

  • De oppresso liber
  • Trade Count: (0)
  • Forum Moderator
  • Elite Member
  • *********
  • Posts: 1422
  • Gender: Male
  • I like too pee on electric fences
  • Location: Harbor Springs, MI
Re: On the way to texas!!
« Reply #9 on: May 20, 2013, 09:35:06 pm »
A++++++++++ work as always Robb. Have you done any of the carbon chrome parts? I think the last few layers have some sort of stainless mesh to make them look like cf chrome.
If brains were gasoline, you couldn't power a **** ant's go-cart 2 laps around a cheerio.

Offline Dirtzilla

  • Trade Count: (0)
  • Weekend Warrior
  • ****
  • Posts: 161
  • Gender: Male
Re: On the way to texas!!
« Reply #10 on: May 21, 2013, 12:19:59 am »
That part looks sweet, good workmanship right there
87  LT500R
98  sporstman500

Offline WestTexasKing

  • The Most
  • Trade Count: (0)
  • Elite Member
  • **********
  • Posts: 1119
  • Kills: 9007
  • Location: Monahans TX
Re: On the way to texas!!
« Reply #11 on: May 21, 2013, 06:59:59 am »
Got the cylinder ready, waiting on a piston.

Offline WestTexasKing

  • The Most
  • Trade Count: (0)
  • Elite Member
  • **********
  • Posts: 1119
  • Kills: 9007
  • Location: Monahans TX
Re: On the way to texas!!
« Reply #12 on: May 25, 2013, 03:16:13 pm »
PV cover arrived today!
Looks great, even better than the pictures.
I'll get some shots of it on the engine here in the next day or so.
First impression...lightweight, tough, window is clear, finish is glossy smooth, mating surface looks to be true.
Hard to believe there's 16 layers in there!

Offline 13.robb

  • Trade Count: (0)
  • Weekend Warrior
  • ****
  • Posts: 170
  • Gender: Male
  • Location: Lost Vegas???
Re: On the way to texas!!
« Reply #13 on: May 26, 2013, 10:37:44 am »
Cool, that was quick, I forgot to have the wife mail that out until thursday i think. No rush, Robb
I make carbon case savers, and sprocket covers for a bunch of crazies that own ancient bikes, Wait, I have an ancient LT250 too!!!

Offline 13.robb

  • Trade Count: (0)
  • Weekend Warrior
  • ****
  • Posts: 170
  • Gender: Male
  • Location: Lost Vegas???
Re: On the way to texas!!
« Reply #14 on: June 12, 2013, 07:21:27 pm »
How is the rebuild process going tex?
I make carbon case savers, and sprocket covers for a bunch of crazies that own ancient bikes, Wait, I have an ancient LT250 too!!!

Offline WestTexasKing

  • The Most
  • Trade Count: (0)
  • Elite Member
  • **********
  • Posts: 1119
  • Kills: 9007
  • Location: Monahans TX
Re: On the way to texas!!
« Reply #15 on: June 12, 2013, 10:23:50 pm »
Haven't got the cylinder back from the shop, everything else is ready to go!
I'll take a picture of the cover on another cylinder to show how slick it looks.
Now I need to buy some CF bolts with the new cover:
http://www.schmolke-carbon.de/carbon/carbon_uk/schraub.php

Offline Twinzilla

  • Trade Count: (0)
  • Weekend Warrior
  • ****
  • Posts: 225
Re: On the way to texas!!
« Reply #16 on: June 13, 2013, 11:16:02 am »
Robb's work is top notch....I've had him build a couple different carbon fiber pieces for my supermoto and I couldn't be happier with his work or customer service. Great guy to deal with.

Offline Glamisrider

  • Trade Count: (0)
  • Forum Moderator
  • Pro Member
  • *********
  • Posts: 860
  • Gender: Male
  • Location: SoCal
Re: On the way to texas!!
« Reply #17 on: June 13, 2013, 01:06:49 pm »
Cometic makes a PV window gasket out of the CFM base gasket material, maybe that would be the perfect deal under this CF PV window.

It'd cushion & seal it in one.


Offline 13.robb

  • Trade Count: (0)
  • Weekend Warrior
  • ****
  • Posts: 170
  • Gender: Male
  • Location: Lost Vegas???
Re: On the way to texas!!
« Reply #18 on: June 15, 2013, 12:47:51 pm »
Thanks for the kind words twin, and tex i got your pm, lets make sure this works first, then possibly go from there. Robb

 D?
I make carbon case savers, and sprocket covers for a bunch of crazies that own ancient bikes, Wait, I have an ancient LT250 too!!!

Offline 13.robb

  • Trade Count: (0)
  • Weekend Warrior
  • ****
  • Posts: 170
  • Gender: Male
  • Location: Lost Vegas???
Re: On the way to texas!!
« Reply #19 on: July 20, 2013, 10:14:44 pm »
Hey there Tex, I dunno if you are getting my pm's or not, last i heard you had a couple-3 hrs on the new part, was wondering if you had a chance to get out lately on it? Also a couple pix of it installed would be awesome! im ready to make a few of these up, but i want to be sure there is no issues. Thanks again for your input so far. Robb

I make carbon case savers, and sprocket covers for a bunch of crazies that own ancient bikes, Wait, I have an ancient LT250 too!!!

Offline WestTexasKing

  • The Most
  • Trade Count: (0)
  • Elite Member
  • **********
  • Posts: 1119
  • Kills: 9007
  • Location: Monahans TX
Re: On the way to texas!!
« Reply #20 on: July 20, 2013, 10:46:36 pm »
Robb, I've got close to 10hrs on it, and she still looks brand new.
No cracks/crazing/yellowing of the epoxy and no delamination, no signs of adverse reactions due to cylinder heat.
Right now it's on my hybrid, I decided to do both the 250 and the hybrid at the same time (otherwise the hybrid would just keep sitting there while I rode the 250 LOL).
It fits on both engines just fine, I'll get a few pics posted up for you.

Offline 13.robb

  • Trade Count: (0)
  • Weekend Warrior
  • ****
  • Posts: 170
  • Gender: Male
  • Location: Lost Vegas???
Re: On the way to texas!!
« Reply #21 on: July 22, 2013, 09:27:50 pm »
That is great news tex! (also glad your bikes runnin' again) Looks like i will make a few of these up in the next few weeks. I will offer a windowed and non-windowed version. Thanks so much for doin' some R+D for me. I would but 110+ degrees on the sand melts pistons i've heard?
I make carbon case savers, and sprocket covers for a bunch of crazies that own ancient bikes, Wait, I have an ancient LT250 too!!!

Offline WestTexasKing

  • The Most
  • Trade Count: (0)
  • Elite Member
  • **********
  • Posts: 1119
  • Kills: 9007
  • Location: Monahans TX
Re: On the way to texas!!
« Reply #22 on: July 23, 2013, 07:41:21 pm »
Oh dang, I need to get some pictures posted!
Been way too busy lately...

Offline Quadster

  • Trade Count: (0)
  • Weekend Warrior
  • ****
  • Posts: 238
Re: On the way to texas!!
« Reply #23 on: July 23, 2013, 08:15:28 pm »
Oh dang, I need to get some pictures posted!
Been way too busy lately...
Slacker!!

Offline WestTexasKing

  • The Most
  • Trade Count: (0)
  • Elite Member
  • **********
  • Posts: 1119
  • Kills: 9007
  • Location: Monahans TX
Re: On the way to texas!!
« Reply #24 on: July 24, 2013, 01:57:31 am »
I think it's mostly a problem with remembering all the stuff I need to be doing, rather than exploring internets all night LOL
