Identify these frame tabs?
« on: May 15, 2013, 04:52:47 am »
Can anyone tell me what these frame tabs are used for?

Got the 500 frame stripped, welding in some gussets and would like to clean up the frame and remove any tabs etc that are not needed

I'm running a Q pipe V1 and was wondering which tab I need to leave to mount it up.

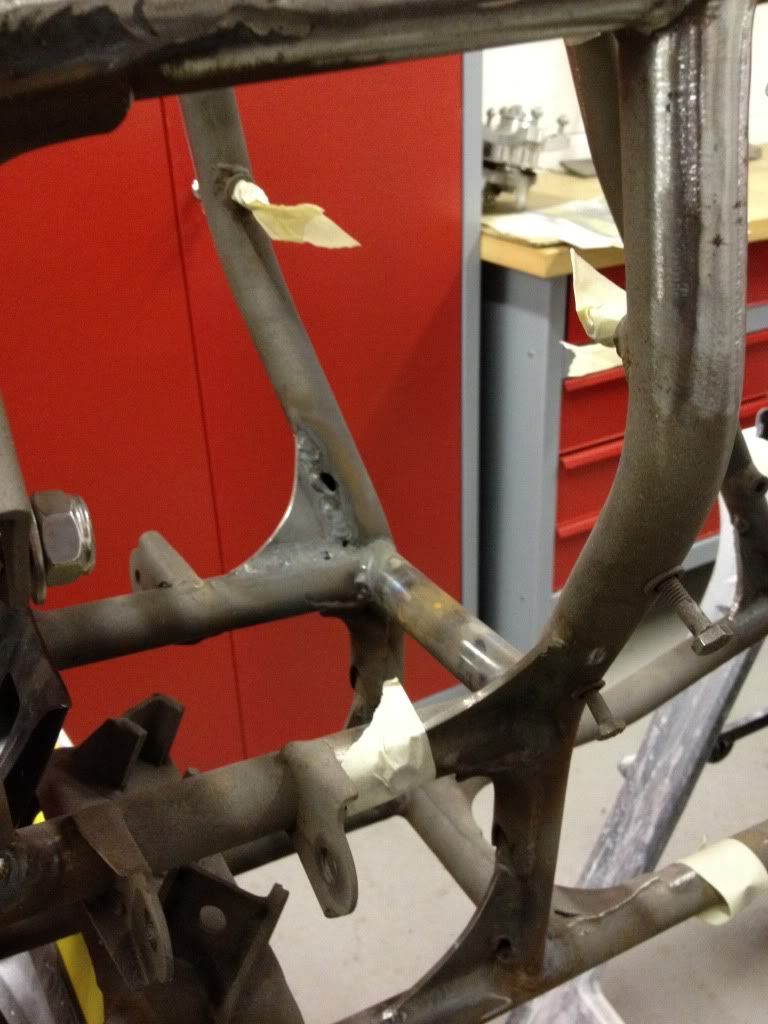

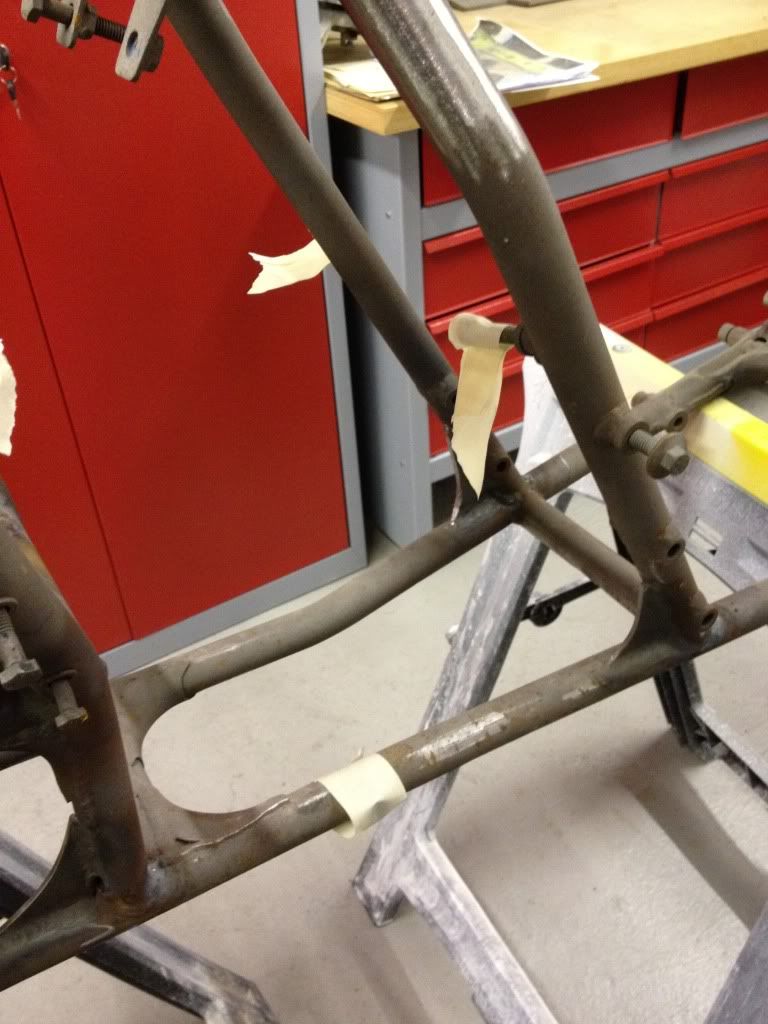

I've put tape on the tabs in question

Cheers

Austen



Logged

Share on Bluesky Share on Facebook

Offline

  • Trade Count: (0)
  • Elite Member
  • **********
  • Posts: 1045
  • Location: Michigan
Re: Identify these frame tabs?
« Reply #1 on: May 15, 2013, 04:59:22 am »
Those are for the front fender brace
Logged

Offline

  • CEO BRP
  • Trade Count: (0)
  • Trail Blazer
  • ******
  • Posts: 772
  • BRaP Small block 302, Released and Running
Re: Identify these frame tabs?
« Reply #2 on: May 15, 2013, 05:03:12 am »
Lower pipe mount (on the bottom frame rail) leave that one. Brake lines, fender support's.
Logged

Offline

  • Trade Count: (0)
  • Green Horn
  • ***
  • Posts: 130
  • Gender: Male
  • Location: England
Re: Identify these frame tabs?
« Reply #3 on: May 15, 2013, 05:13:11 am »
The bottom pic with the flanged bolt sticking out - is this for the top pipe mount? Q V1
Logged

Offline

  • CEO BRP
  • Trade Count: (0)
  • Trail Blazer
  • ******
  • Posts: 772
  • BRaP Small block 302, Released and Running
Re: Identify these frame tabs?
« Reply #4 on: May 15, 2013, 05:28:43 am »
yes that's the upper pipe mount
